Uv-bestand: | Ja | Leidingmateriaal: | Aluminium |
---|---|---|---|
openluchtgebruik: | Ja | Type: | Laag Voltage |
Bedrijfstemperatuur: | -5 - +70 °C | Buigende straal: | 10 x DA |

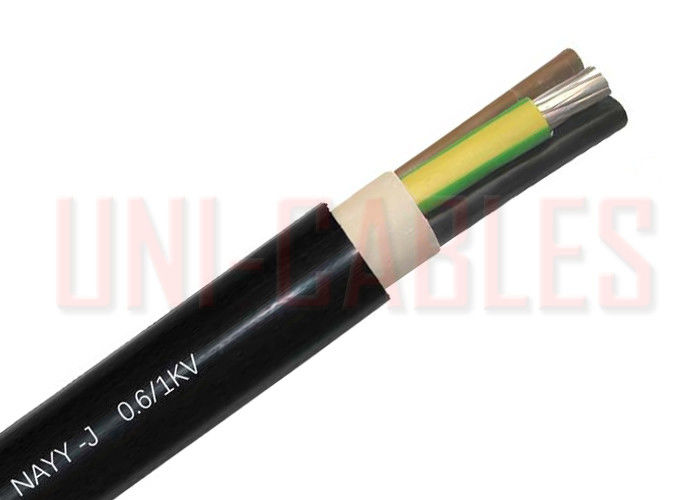

Nayy-j/- van de het Lage Voltagekabel van O isoleerde pvc van de het Aluminiumleider Machtskabel
TOEPASSING
De kabel van de distributiemacht voor statische openluchttoepassing (met bescherming tegen directe Uv-bestraling), in grond, in water, binnen faciliteiten, in kabelkanalen, in beton, in voorwaarden waar de zwaardere mechanische ladingen en speciaal de trekspanningen, niet worden verwacht. Gebruikt in bedrijven, metropolitaanse netwerken en in andere elektrische installaties.

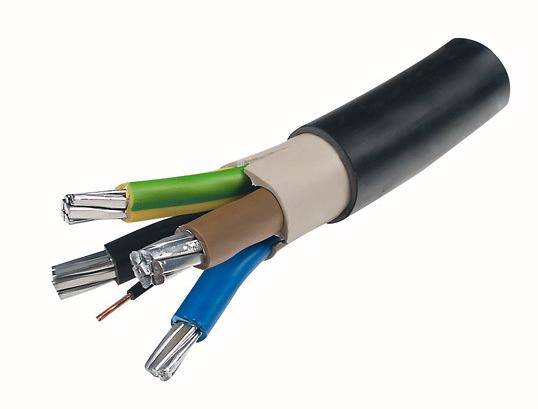

BOUW
Leider van stevige aluminiumdraden, ronde of sectorvorm
- Pvc-isolatie
- verpakte thermoplastische bandenvuller
- Pvc-schede
Norm | VDE 0276-603 |
Directe begrafenis | ja |
VDE | ja |
CPR-prestaties | Eca |
Leidermateriaal | aluminium |
Isolatie | PVC AFD. 4 |
In de schede stekend materiaal | PVC DMV 5 |
Kleuren buitenschede | zwart |
Flame-retardant | VDE 0482-332-1-2/IEC 60332-1-2 |
Uv-bestand | ja |
Voor openluchtgebruik | ja |
Maximum toegelaten leidertemperatuur | 70 °C |
Toegelaten buiten vaste kabeltemperatuur, | 70 °C |
Toegelaten buitenkabeltemperatuur, in motie/tijdens installatie | -5 - +70 °C |
AFMETINGEN
Aantal kernen x leiderdwarsdoorsnede | Bouw | Uitwendige diameter | Isolatiedikte | Schededikte | Leiderweerstand bij 20 °C | Kortsluiting huidige 1s | Kabelgewicht |
min - max. | nom. | nom. | max. | nom. | |||
N x mm ² | mm | mm | mm | Ω/km | Ka | kg/km | |
1 x 50 | RM | 14 - 17 | 1,4 | 1,8 | 0.641 | 3,80 | 298 |
1 x 70 | RM | 16 - 19 | 1,4 | 1,8 | 0.443 | 5,32 | 383 |
1 x 95 | RM | 18 - 21 | 1,6 | 1,8 | 0.320 | 7,22 | 490 |
1 x 120 | RM | 19 - 22 | 1,6 | 1,8 | 0.253 | 9,12 | 575 |
1 x 150 | RM | 21 - 25 | 1,8 | 1,8 | 0.206 | 11,40 | 695 |
1 x 185 | RM | 23 - 27 | 2,0 | 1,8 | 0.164 | 14,10 | 845 |
1 x 240 | RM | 26 - 30 | 2,2 | 1,8 | 0.125 | 18,20 | 1100 |
1 x 300 | RM | 28 - 32 | 2,4 | 1,9 | 0.100 | 22,80 | 1379 |
1 X400 | RM | 32 - 37 | 2,6 | 2,0 | 0,0778 | 27,20 | 1615 |
1 X.500 | RM | 35 - 40 | 2,8 | 2,1 | 0,0605 | 34,00 | 2015 |
1 x 630 | RM | 41 - 45 | 2,8 | 2,2 | 0,0469 | 42,84 | 2472 |
4 x 16 | RE | 21 - 25 | 1,0 | 1,8 | 1,91 | 1,21 | 750 |
X25 4 | RE, RM | 25 - 32 | 1,2 | 1,8 | 1.200 | 1,90 | 950 |
4 x 35 | RE, SM | 27 - 34 | 1,2 | 1,8 | 0.868 | 2,66 | 1141 |
4 x 50 | SE, SM | 29 - 36 | 1,4 | 1,9 | 0.641 | 3,80 | 1242 |
4 x 70 | SE, SM | 33 - 40 | 1,4 | 2,1 | 0.443 | 5,32 | 1631 |
4 x 95 | SE, RM | 38 - 45 | 1,6 | 2,2 | 0.320 | 7,22 | 2063 |
4 x 120 | SE, SM | 41 - 49 | 1,6 | 2,4 | 0.253 | 9,12 | 2538 |
4 x 150 | SE, SM | 46 - 54 | 1,8 | 2,5 | 0.206 | 11,40 | 3090 |
4 x 185 | SE, SM | 51 - 59 | 2,0 | 2,7 | 0.164 | 14,10 | 3838 |
4 x 240 | SE, SM | 57 - 65 | 2,2 | 2,9 | 0.125 | 18,20 | 4863 |
4 x 16+2,5 | RM+RE | 21,6 | 1,0 | 1,8 | 1,91 | 1,21 | 781 |
4 x25+2,5 | RM+RE | 28 | 1,2 | 1,8 | 1.200 | 1,90 | 981 |
4 x 35+2,5 | SM+RE | 31 | 1,2 | 1,8 | 0.868 | 2,66 | 1172 |
4 x 50+2,5 | SM+RE | 35 | 1,4 | 1,9 | 0.641 | 3,80 | 1273 |
4 x 70+2,5 | SM+RE | 38 | 1,4 | 2,1 | 0.443 | 5,32 | 1662 |
4 x 95+2,5 | SM+RE | 42 | 1,6 | 2,2 | 0.320 | 7,22 | 2094 |
4 x 120+2,5 | SM+RE | 46 | 1,6 | 2,4 | 0.253 | 9,12 | 2569 |
4 x 150+2,5 | SM+RE | 49 | 1,8 | 2,5 | 0.206 | 11,40 | 3121 |
4 x 185+2,5 | SM+RE | 54 | 2,0 | 2,7 | 0.164 | 14,10 | 3869 |
4 x 240+2,5 | SM+RE | 59 | 2,2 | 2,9 | 0.125 | 18,20 | 4894 |
